本人最近参与基于MVC5+EF6+ Bootstrap3的食品安全监管系统设计、开发。先前感觉百度地图很神秘的样子、高大上的样子，设计、开发过程遇到些问题，经查看园子高手指点、示例摸索实践，终将百度地图嵌入系统。为感谢各位朋友的帮助，今有空，将基于百度地图实现产品销售的单位位置查看功能，分享给大家。不当之处，欢迎指正。
2.产品生产批次查询
查看单位产品生产批次信息，根据产品生产批次查看，产品销售单位情况。

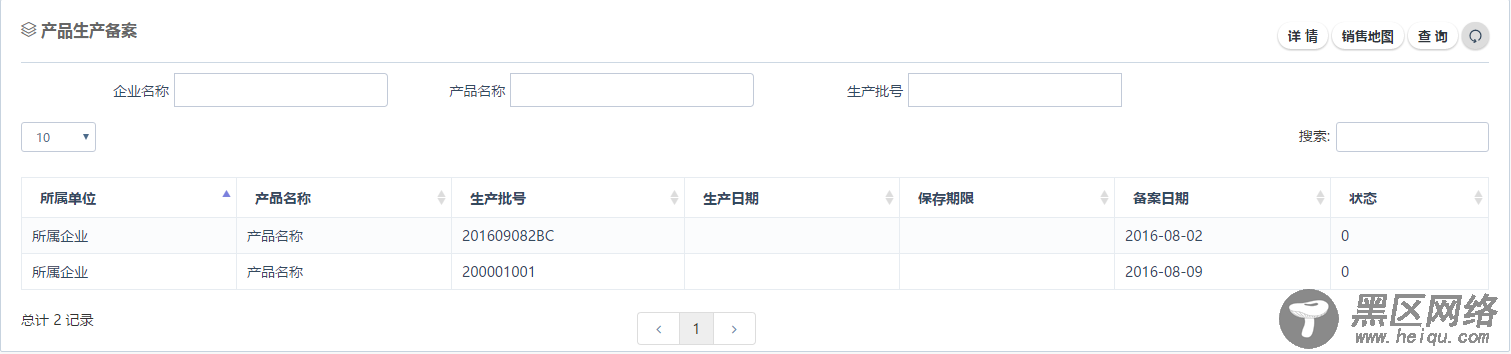

效果图如下：
3.产品销售地图
根据选择的产品生产批次信息，查询统计产品销售到哪些省市，省市有多少家单位，根据单位地址，使用百度地图显示单位所在省市位置。

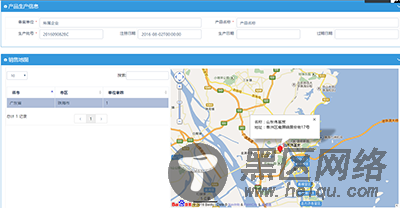

效果图如下：
4.产品销售地图View代码
@{ ViewBag.Title = "Index"; Layout = "~/Views/Shared/_TableLayout.cshtml"; } @*工具栏*@ @section actionBar{ <button data-bind="click: returnCommand">返回列表</button> <button data-bind="click: prevCommand">上一条</button> <button data-bind="click: nextCommand">下一条</button> } @section CustomContent { <form enctype="multipart/form-data"> <div> <div> <div> <div> <i></i>产品生产信息 </div> <div> <a href="javascript:;"> </a> </div> </div> <div> <input type="hidden" data-bind="value:viewmodel.Id" /> <input type="hidden" data-bind="value:viewmodel.OrgId" /> <input type="hidden" data-bind="value:viewmodel.ProductId" /> <div> <div> <label>备案单位 <span> * </span></label> <div> <input type="text" readonly="readonly" placeholder="" data-bind="value: viewmodel.OrgName" /> </div> <label>产品名称 <span> * </span></label> <div> <input type="text" readonly="readonly" placeholder="" data-bind="value: viewmodel.ProductName" /> </div> </div> <div> <label>生产批号 <span> * </span></label> <div> <input type="text" readonly="readonly" data-bind="value: viewmodel.BatchNumber" /> </div> <label>注册日期</label> <div> <input type="text" readonly="readonly" data-bind="value: viewmodel.RegDate" /> </div> <label>生产日期</label> <div> <input type="text" readonly="readonly" data-bind="value: viewmodel.ProductMakeDate" /> </div> <label>过期日期</label> <div> <input type="text" readonly="readonly" data-bind="value: viewmodel.ProductExpDate" /> </div> </div> </div> </div> </div> <div> <div> <div> <i></i>销售地图 </div> <div> <a href="javascript:;"> </a> </div> </div> <div> <div> <div> <table> <thead> <tr> <th>省市</th> <th>市区</th> <th>单位家数</th> </tr> </thead> </table> </div> <div> <div></div> </div> </div> </div> </div> </div> </form> } @section customScript { <script src="https://www.jb51.net/~/Scripts/page/share/_SecondTableLayout.js"></script> <script type="text/javascript"> var mDataGrid = function () { var TableViewModel = SecondTableLayoutViewModel.extend({ constructor: function (ViewModel) { this.base(ViewModel, undefined); //设置内容 own.viewmodel = ko.mapping.fromJS(ViewModel); own.btnAddVisible = false; own.btnEditVisible = false; own.btnDelVisible = false; own.Caption("生产批号-"+ViewModel.BatchNumber); own.loadTableData(own.tableOptions,ViewModel.ProductID,ViewModel.Id); own.ProductId = ViewModel.ProductID; own.CurrentId = ViewModel.Id; own.InitMap(); }, viewmodel: null , ProductId:null , CurrentId:null , PrevId: null , NextId:null ,bMap:null ,tableOptions: { src: $("#myDataGrid"), dataTable: { "ajax": { "url": "/Basic/ProductBatch/GetBAreaStatistics", "type": "GET" }, "columns": [ { "data": "ProvinceName" }, { "data": "CityName" }, { "data": "Amount" }, ], } } ,loadTableData: function (options, ProductId, BatchId) { if (own.grid != undefined) return; //console.log(ProductId+"|"+BatchId); var table = own.getTable(); table.clearAjaxParams(); table.addAjaxParam("ProductId", ProductId); table.addAjaxParam("BatchId", BatchId); var tableSetting = $.extend({}, { onSuccess: function (grid, response) { own.table_on_success(grid, response); }, onError: function (grid) { own.table_on_error(grid) }, onDataLoad: function (grid) { own.table_on_dataload(grid) }, dataTable: { "bStateSave": true, }, rowClick: function (grid, rowData) { own.tableRowClick(grid, rowData); } }, options); //! 记下loadUrl,自刷新时使用. own.loadUrl = tableSetting.dataTable.ajax.url; table.init(tableSetting); } ,InitMap:function(){ //创建Map实例 bMap = new BMap.Map("divMap"); var point = new BMap.Point(118.060576, 36.842432); bMap.centerAndZoom("山东省禹城市", 15); //添加鼠标滚动缩放 bMap.enableScrollWheelZoom(); //添加缩略图控件 bMap.addControl(new BMap.OverviewMapControl({ isOpen: false, anchor: BMAP_ANCHOR_BOTTOM_RIGHT })); //添加缩放平移控件 bMap.addControl(new BMap.NavigationControl()); //添加比例尺控件 bMap.addControl(new BMap.ScaleControl()); //添加地图类型控件 //map.addControl(new BMap.MapTypeControl()); } ,LoadMap:function(cityName,listEnter){ //重新定位城市 //var mCityName = "广东省珠海市"; bMap.centerAndZoom(cityName, 12); //var mAddress = ["香洲区九洲大道东石花三巷吉南大厦2楼","香洲区南屏镇居安街17号"]; for(var i=0;i < listEnter.length;i++) { //console.log(mAddress[i]); own.LoadMarker(cityName,listEnter[i]); } } ,LoadMarker:function(cityName,enterinfo){ //为城市单位标注 var mGeocoder = new BMap.Geocoder(); var mAddress = enterinfo.Address; if(enterinfo.Address == "") { mAddress = enterinfo.AreaName+enterinfo.StreetName; } if(mAddress == "") return; mGeocoder.getPoint(mAddress, function(point){ if (point) { var mPoint = new BMap.Point(point.lng, point.lat); var marker = new BMap.Marker(mPoint); bMap.addOverlay(marker); marker.setLabel(new BMap.Label(enterinfo.EnterName,{offset:new BMap.Size(20,-10)})); var content = "<table>"; content = content + "<tr><td> 名称："+enterinfo.EnterName+"</td></tr>"; content = content + "<tr><td> 地址："+mAddress+"</td></tr>"; content += "</table>"; var infowindow = new BMap.InfoWindow(content); marker.addEventListener("click", function () { this.openInfoWindow(infowindow); }); } }, cityName); } ,tableRowClick: function (grid, rowData) { if(rowData == undefined) return; console.log(rowData.ProvinceName+" "+ rowData.CityName); $.post("/Basic/ProductBatch/GetBEnterStatistics" , { ProductId: own.ProductId, BatchId: own.CurrentId,ProvinceName:rowData.ProvinceName,CityName:rowData.CityName } , function (result) { if(result.ResultType != undefined) return; //console.log(JSON.stringify(result)); //重新加载地图 own.LoadMap(rowData.ProvinceName+""+ rowData.CityName,result.data); }); this.base(grid, rowData); } ,returnCommand: function () { //返回产品生产批次列表 App.jumpTo({ url: "/Basic/ProductBatch/Index", data: { Id:this.CurrentId } }); }, prevCommand: function () { if (this.PrevId == undefined || this.PrevId == null || this.PrevId == "") { alert("上一条为空，已没有其它结果！"); return; } App.jumpTo({ url: "/Basic/ProductBatch/IndexMap", data: { ProductId:this.ProductId, BatchId: this.PrevId } }); }, nextCommand: function () { if (this.NextId == undefined || this.NextId == null || this.NextId == "") { alert("下一条为空，已没有其它结果！"); return; } App.jumpTo({ url: "/Basic/ProductBatch/IndexMap", data: { ProductId:this.ProductId, BatchId: this.NextId } }); }, }); return { init: function (ViewModel,PrevId,NextId) { SecondTableLayoutViewModel.resetKoBindID("divIndexView"); var node = document.getElementById("divIndexView"); ko.cleanNode(node); //console.log(JSON.stringify(ViewModel)); var mTableViewModel = new TableViewModel(ViewModel); mTableViewModel.ProductId = ViewModel.ProductID; mTableViewModel.PrevId = PrevId; mTableViewModel.NextId = NextId; ko.applyBindings(mTableViewModel, node); } }; }(); jQuery(document).ready(function () { var mPrevId = "@ViewBag.PrevId"; var mNextId = "@ViewBag.NextId"; mDataGrid.init(@Html.Raw(ViewBag.ViewModel),mPrevId,mNextId); }); </script> }
5.产品销售地图 Controler 代码
