MySQL主从配置图文详解

最近工作不是很忙,把以前整理的MySQL数据库的主从配置过程记录一下,有不足之处,请各位多多纠正指教。

#环境配置#
master IP:192.168.46.137 slave IP:192.168.46.138 database:v1

1.在两台机器,分别安装mysql数据库,分别添加远程连接权限

2.配置主数据库



#编辑mysql的配置文件,增加以下内容#
vim etc/my.cnf
server-id=1
binlog-do-db=v1
relay-log=/var/lib/mysql/mysql-relay-bin
relay-log-index=/var/lib/mysql/mysql-relay-bin.index
log-error=/var/lib/mysql/mysql.err
master-info-file=/var/lib/mysql/mysql-master.info
relay-log-info-file=/var/lib/mysql/mysql-relay-log.info
log-bin=/var/lib/mysql/mysql-bin
编辑完成后,重启mysql,systemctl restart mysqld.service(CentOS7 直接使用systemctl命令)
创建一个复制用户,具有replication slave 权限
grant replication slave on *.* to 'user3'@'192.168.46.138' identified by 'user3';
用户名:user3 密码:user3
flush privileges;
#查看主库状态#

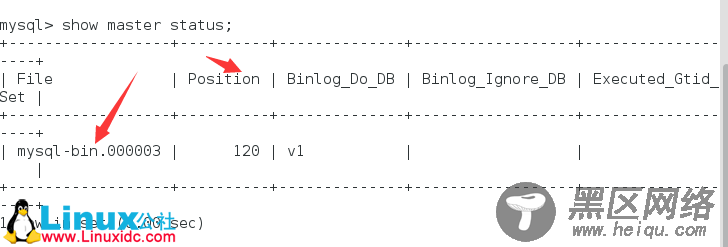

show master status;

MySQL主从配置图文详解


记住FileSet和Position参数值,后面步骤会用到



3.配置从数据库



#编辑从数据库配置文件,添加以下内容#
vim etc/my.cnf
server-id=2
replicate-do-db=v1
relay-log=/var/lib/mysql/mysql-relay-bin
relay-log-index=/var/lib/mysql/mysql-relay-bin.index
log-error=/var/lib/mysql/mysql.err
master-info-file=/var/lib/mysql/mysql-master.info
relay-log-info-file=/var/lib/mysql/mysql-relay-log.info
log-bin=/var/lib/mysql/mysql-bin
注意:两个数据库配置文件里的server-id不能相同
重启mysql
mysql -u root -pxxx
change master to master_host='192.168.46.137',master_user='user3',master_password='user3',master_log_file='mysql-bin.000003',master_log_pos=120;
#启动slave线程#
start slave;
# 查看slave状态,注意G后面没有分号#

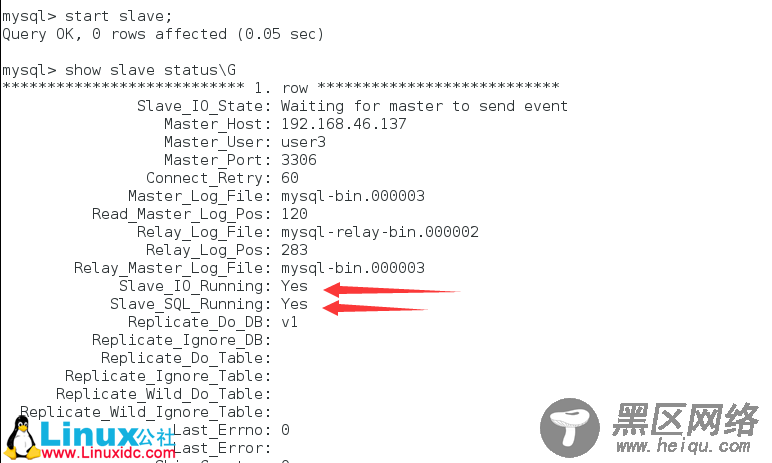

show slave status\G

MySQL主从配置图文详解


  红色箭头所指两个参数,如果都为Yes,说明配置成功,如果Slave_IO_Running为connecting,请检查防火墙,端口是否开放,FIle,Position参数是否一致,网络是否畅通等 到此,mysql主从配置完成,可以新增数据查看是否同步了
