在6.5版本上创建ISO仓库不会牵扯到创建lvm时权限错误，但是再7.0版本却会出现这种错误，如下：
[root@DS-Server04 ~]# lvcreate -L 20G -n local_iso `vgs|awk 'NR==2{print $1}'`
lvcreate -L 20G -n local_iso VG_XenStorage-8e812398-6d55-b06a-2907-ac95c4c12533: Command not permitted while global/metadata_read_only is set.
提示为全局只读，不给创建。查官方资料，需要添加一个全局配置选项“--config global{metadata_read_only=0}”
在xenserver7上如下按如下步骤添加本地ISO仓库：
[root@DS-Server04 ~]# lvcreate -L 20G -n local_iso `vgs|awk 'NR==2{print $1}'` --config global{metadata_read_only=0}
Logical volume "local_iso" created.
[root@DS-Server04 ~]# mkfs.ext4 /dev/`vgs|awk 'NR==2{print $1}'`/local_iso
mke2fs 1.42.9 (28-Dec-2013)
Filesystem label=
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
Stride=0 blocks, Stripe width=0 blocks
1310720 inodes, 5242880 blocks
262144 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=2153775104
160 block groups
32768 blocks per group, 32768 fragments per group
8192 inodes per group
Superblock backups stored on blocks:
32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
4096000
Allocating group tables: done
Writing inode tables: done
Creating journal (32768 blocks): done
Writing superblocks and filesystem accounting information: done
[root@DS-Server04 ~]# blkid /dev/`vgs|awk 'NR==2{print $1}'`/local_iso
/dev/VG_XenStorage-8e812398-6d55-b06a-2907-ac95c4c12533/local_iso: UUID="70674e3f-2d08-4623-b348-2f8bb6482c4d" TYPE="ext4"
[root@DS-Server04 ~]# echo 'UUID=70674e3f-2d08-4623-b348-2f8bb6482c4d /iso_storage ext4 defaults 0 0' >>/etc/fstab
[root@DS-Server04 ~]# mkdir /iso_storage
[root@DS-Server04 ~]# mount -a
[root@DS-Server04 ~]# df -hP
Filesystem Size Used Avail Use% Mounted on
/dev/sda1 18G 1.8G 16G 11% /
devtmpfs 2.0G 0 2.0G 0% /dev
tmpfs 2.0G 84K 2.0G 1% /dev/shm
tmpfs 2.0G 1.6M 2.0G 1% /run
tmpfs 2.0G 0 2.0G 0% /sys/fs/cgroup
xenstore 2.0G 0 2.0G 0% /var/lib/xenstored
/dev/loop0 55M 55M 0 100% /var/xen/xc-install
/dev/sda4 512M 2.0M 510M 1% /boot/efi
/dev/sda5 4.0G 140M 3.7G 4% /var/log
tmpfs 393M 0 393M 0% /run/user/0
/dev/VG_XenStorage-8e812398-6d55-b06a-2907-ac95c4c12533/local_iso 20G 45M 19G 1% /iso_storage
[root@DS-Server04 ~]# xe sr-create name-label=iso_storage type=iso device-config:location=/iso_storage device-config:legacy_mode=true content-type=iso
xe-mount-iso-sr /iso_storage

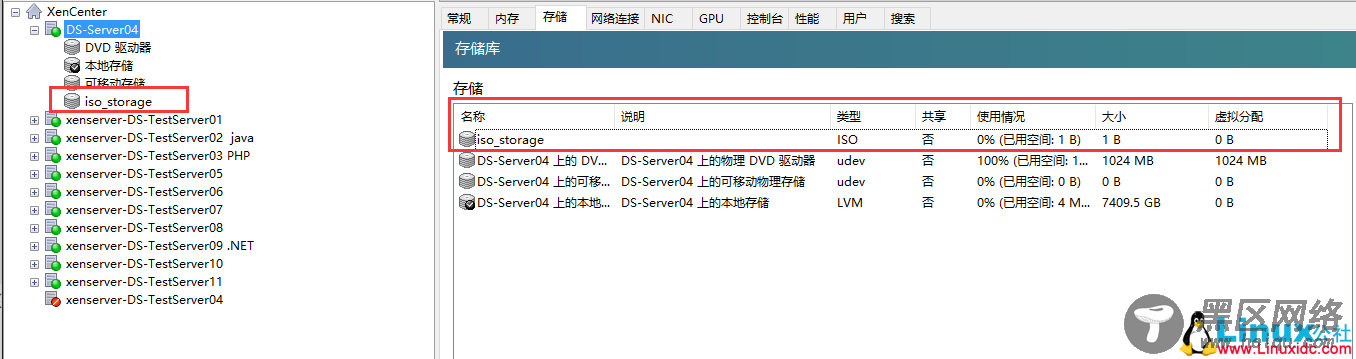

在管理界面查看ISO仓库：
至此，本地仓库创建成功。
